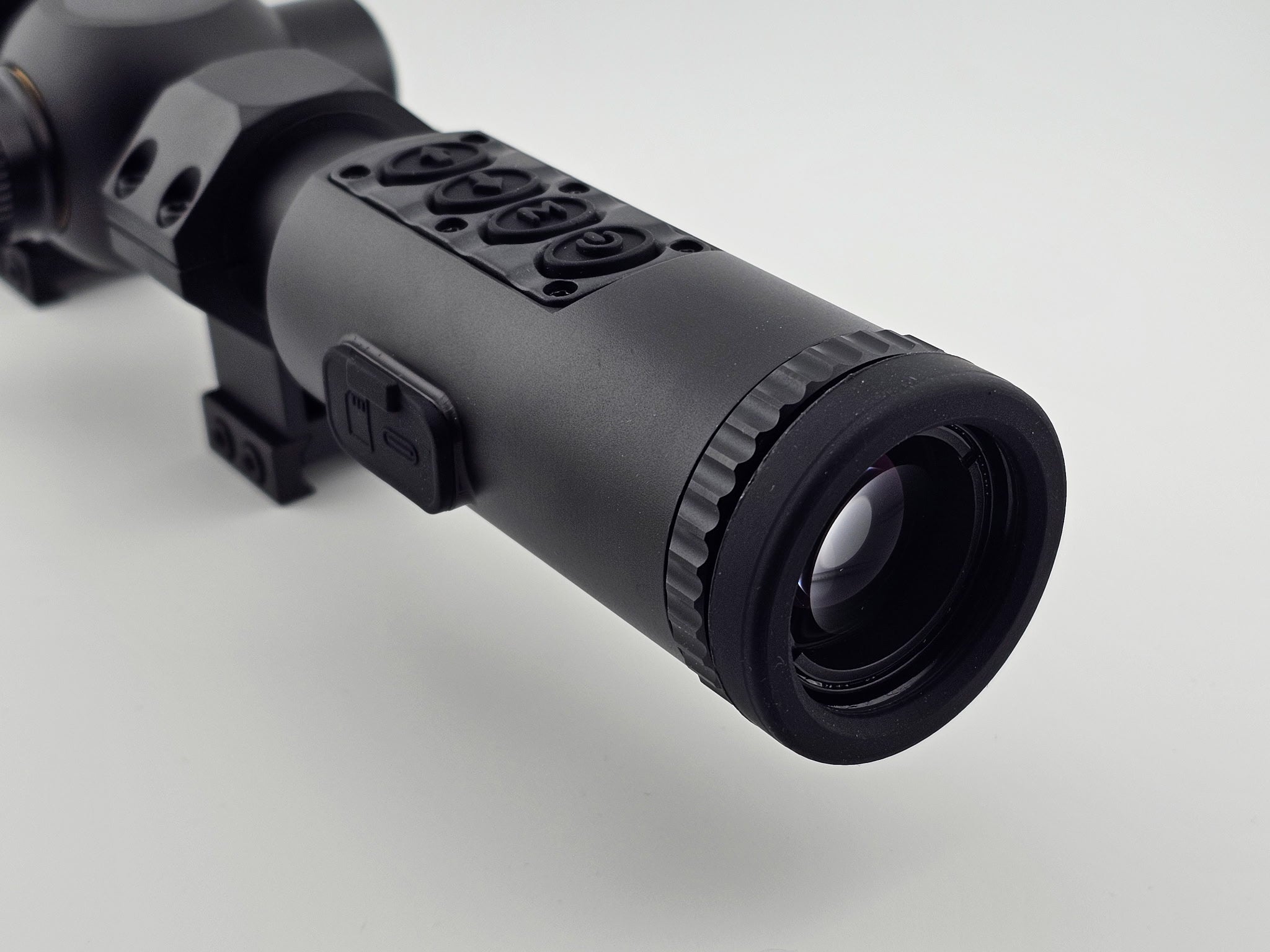

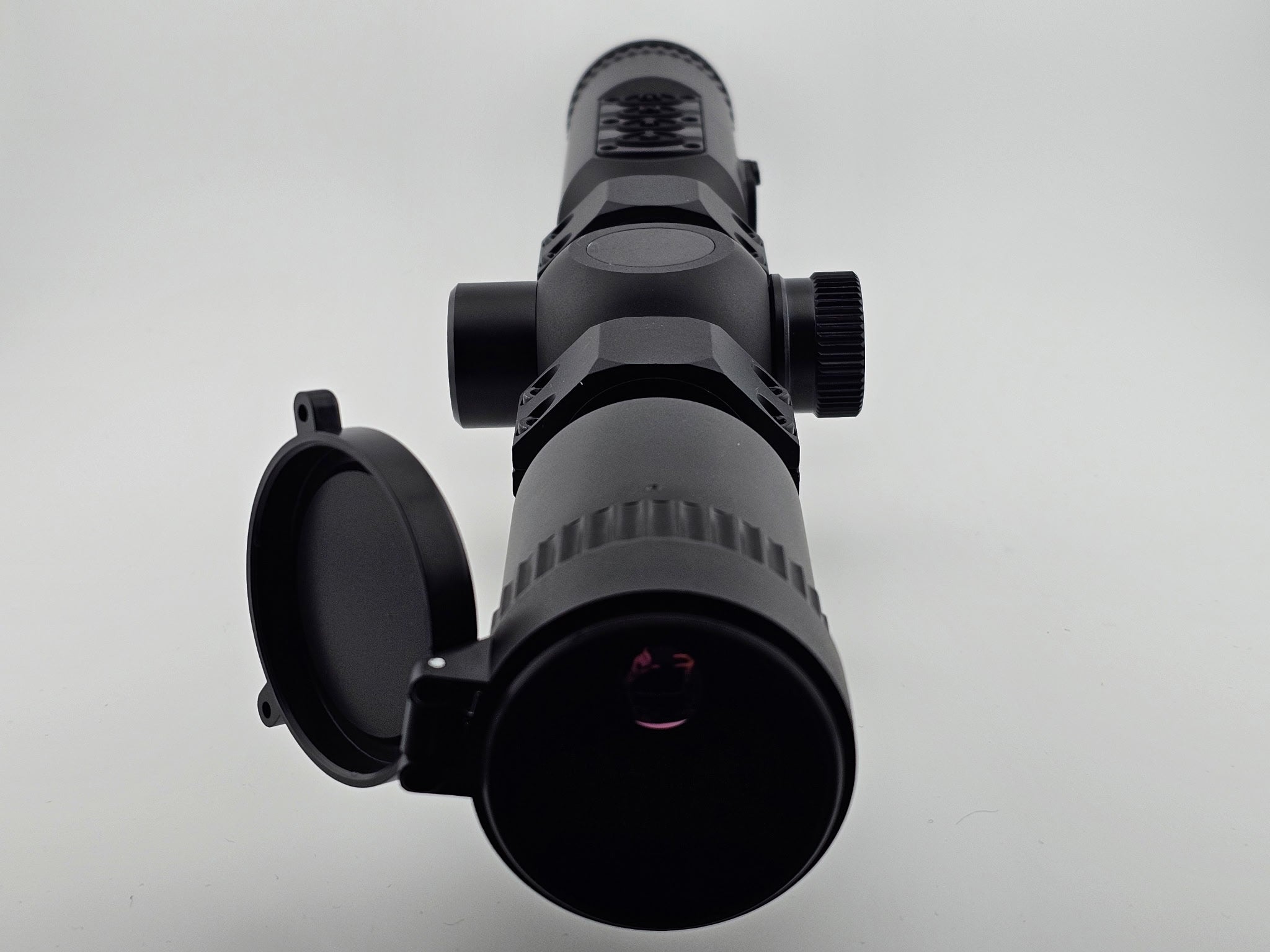

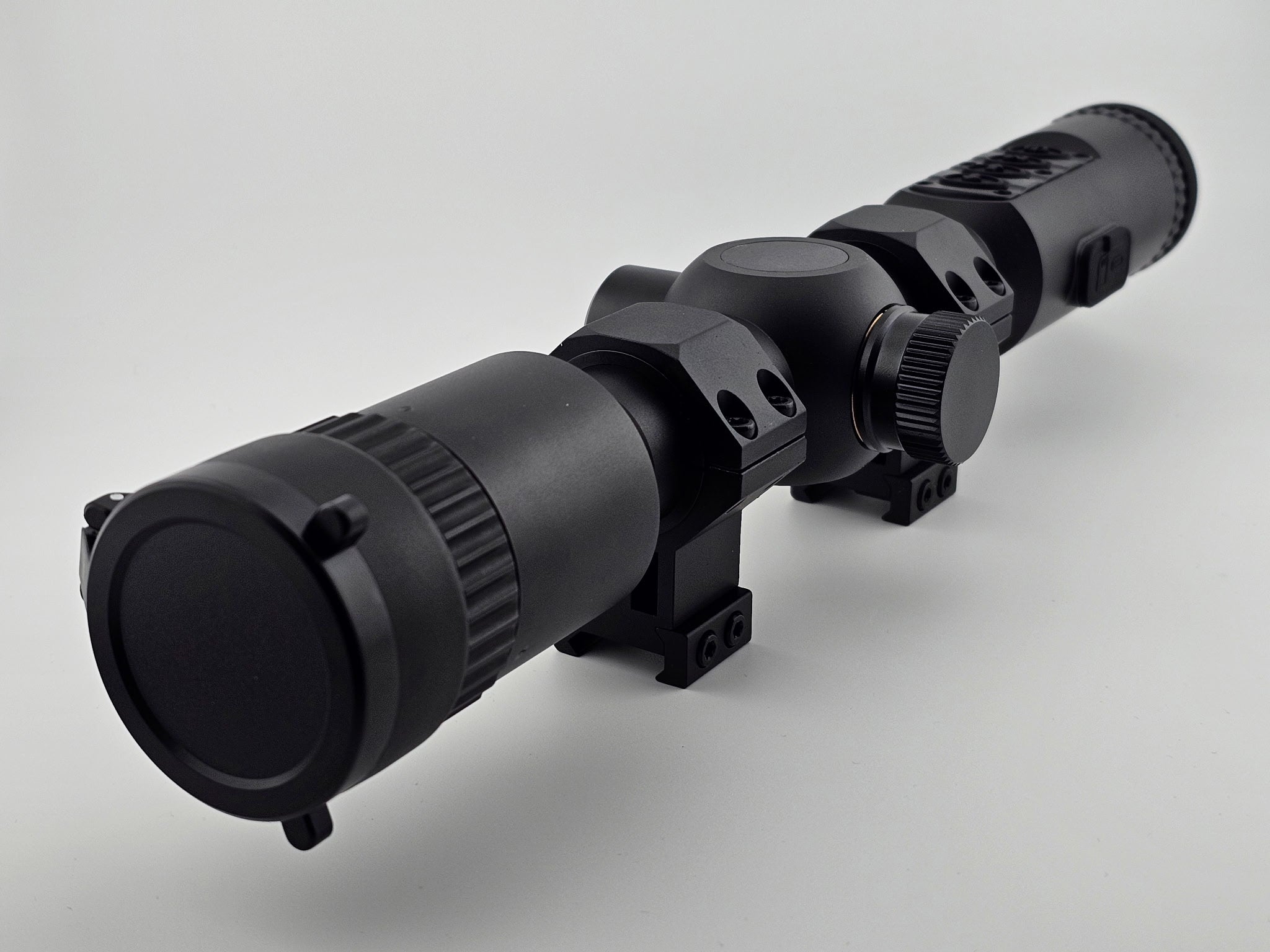

NK-GUARDIAN

NK-Guardian: Long-Range Thermal Mastery

The NK-Guardian is a professional-grade thermal optic engineered for high-stakes predator hunting and surveillance. Featuring a 384×288 sensor with 25 mK sensitivity, it delivers exceptional contrast and fluid 50Hz real-time imagery. With a massive 1,800m detection range and field-proven identification out to 400 yards, the Guardian is built for those who prioritize performance over specs.

Equipped with a 25mm objective lens, the system offers 2.5× to 7.5× magnification and eight color palettes to adapt to any environment. With integrated PIP mode, MRAD/MOA reticle options, and USB-C video recording, the NK-Guardian integrates seamlessly into your tactical workflow.

Thermal Imaging System

• Sensor Type: Uncooled microbolometer


• Thermal Resolution: 384 × 288


• Pixel Pitch: 12 μm


• Thermal Sensitivity (NETD): ≤ 25 mK


• Frame Rate: 50 Hz


• Detection Range: Up to 1,800 meters


Optical Performance

• Objective Lens: 25 mm


• Base Optical Magnification: 2.5×


• Digital Zoom: 2.5× / 5× / 7.5×


• Effective Identification Range: Up to 400 yards (field verified)


Thermal Palettes

• White Hot

• Black Hot

• Fusion

• Iron Hot

• Sepia

• Ice Fire

• Green Hot

• Red Hot

• Picture-in-Picture (PIP): Yes


Reticle & Ballistics

• Reticle Units: MRAD and MOA selectable


Recording & Connectivity

• Video Recording: Real-time recording and playback


• Storage: Integrated high-speed memory


• Connectivity: USB Type-C


• Functions: Charging, video transfer, mobile app support


• Live Streaming: Supported (optimized for direct optic viewing)


Controls & Ergonomics

• Control Interface: Intuitive button layout


• Operation: Glove-compatible, low-light optimized


Configuration Availability

• Model Offered: NK-Guardian


• Sensor Configuration: 384 × 288


• Lens Configuration: 25 mm objective lens


Warranty & Sales Policy

• Warranty: Two-year limited manufacturer warranty


• Sales Policy: Purchases are final at the time of sale


Application Use

• Predator Hunting


• Night Hunting


• Surveillance


• Ranch & Land Management
